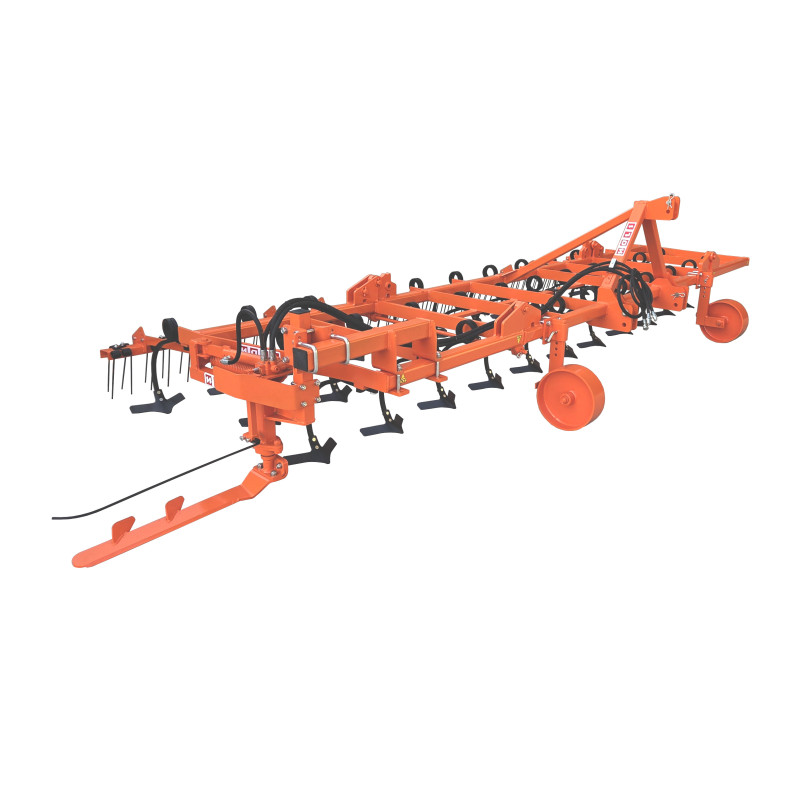

Vibrocultivators Model VC
Vibrocultivators Model VC.
Vibrocultivators Model VC, square 20 mm. arms, depth-control wheels.
Manufactured with ploughing widths from 2 to 12 Mtrs.
Mechanical and hydraulic articulated system. Mounted on two or three rows of arms.
Fitted with spring rake as optional extra.
Features Vibrocultivator Model VC 2 Rows
| Núm.Arms | Width Work | Depth Cms. | Weight Aprox. Kgrs. | Minimum Power CV |
| 17 | 3.000 mm. | 5 - 10 | 265 | 50 - 60 |
| 19 | 3.400 mm. | 5 - 10 | 332 | 60 - 70 |
| 21 | 4.200 mm. | 5 - 10 | 399 | 70 - 90 |
Features Vibrocultivator Model VC 3 Rows
| Núm.Arms | Width Work | Depth Cms. | Weight Aprox. Kgrs. | Minimum Power CV |
| 19 | 3.000 mm. | 5 - 10 | 376 | 50 - 65 |
| 22 | 3.400 mm. | 5 - 10 | 515 | 60 - 70 |
| 28 | 4.200 mm. | 5 - 10 | 654 | 70 - 90 |
| 31 | 5.000 mm. | 5 - 10 | 865 | 90 - 110 |
| 34 | 5.500 mm. | 5 - 10 | 1.015 | 110 - 120 |
| 37 | 6.000 mm. | 5 - 10 | 1.168 | 120 - 130 |
| 40 | 6.500 mm. | 5 - 10 | 1.230 | 130 - 140 |
| 43 | 7.000 mm. | 5 - 10 | 1.330 | 150 - 160 |
| 60 | 10.000 mm. | 5 - 10 | 3.190 | 180 - 190 |
| 66 | 11.000 mm. | 5 - 10 | 3.425 | 200 - 220 |
| 73 | 12.000 mm. | 5 - 10 | 3.660 | 230 - 260 |
The measures and weights indicated in the table are approximate, depend on the configuration options and Vibrocultivator.
Vibrocultivators Model VC, square 20 mm. arms, depth-control wheels.
Manufactured with ploughing widths from 2 to 12 Mtrs.
Mechanical and hydraulic articulated system. Mounted on two or three rows of arms.
Fitted with spring rake as optional extra.
