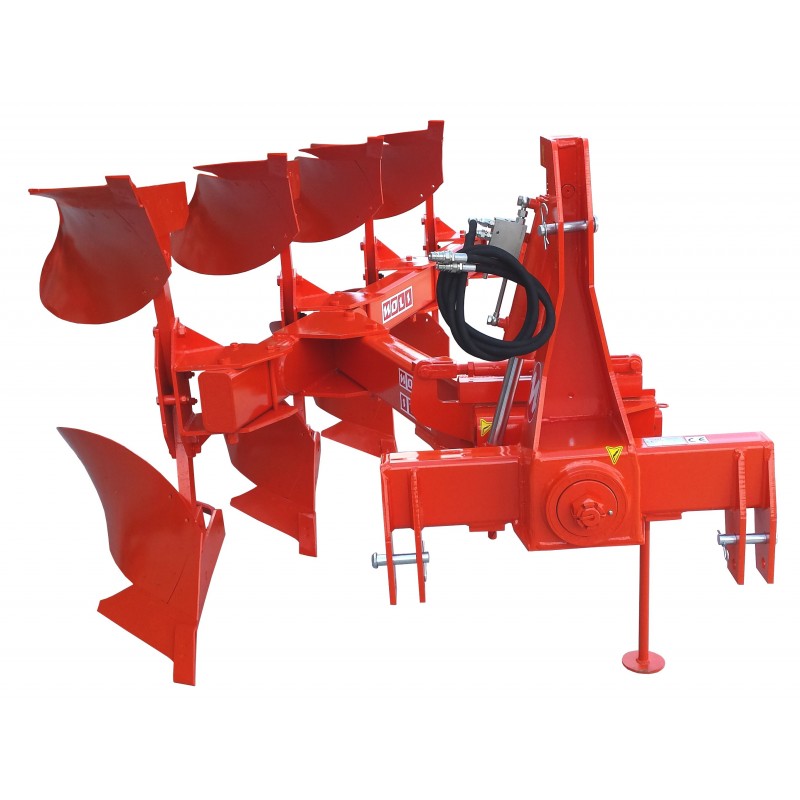

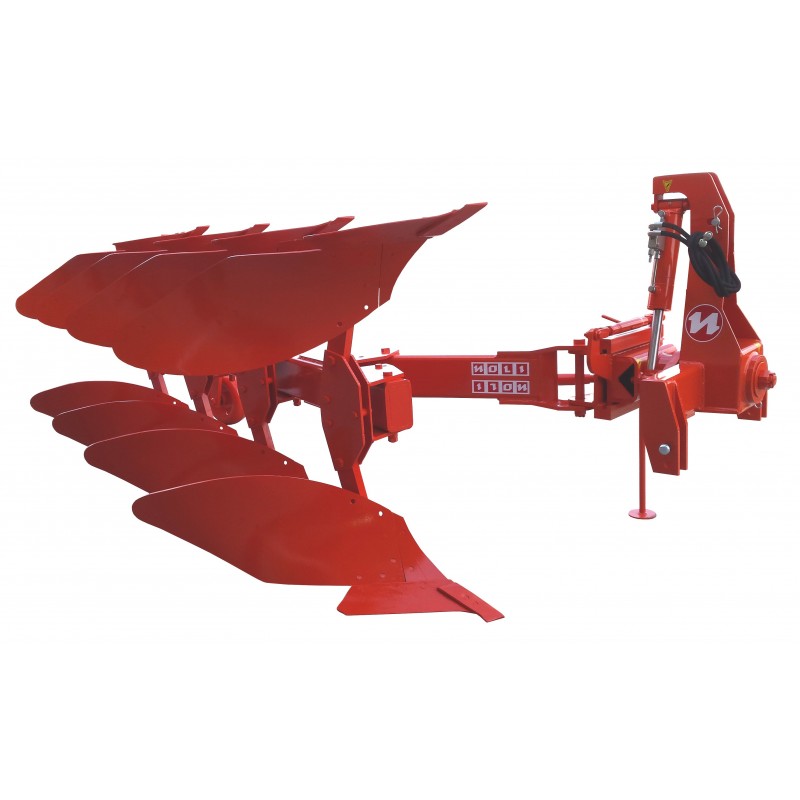

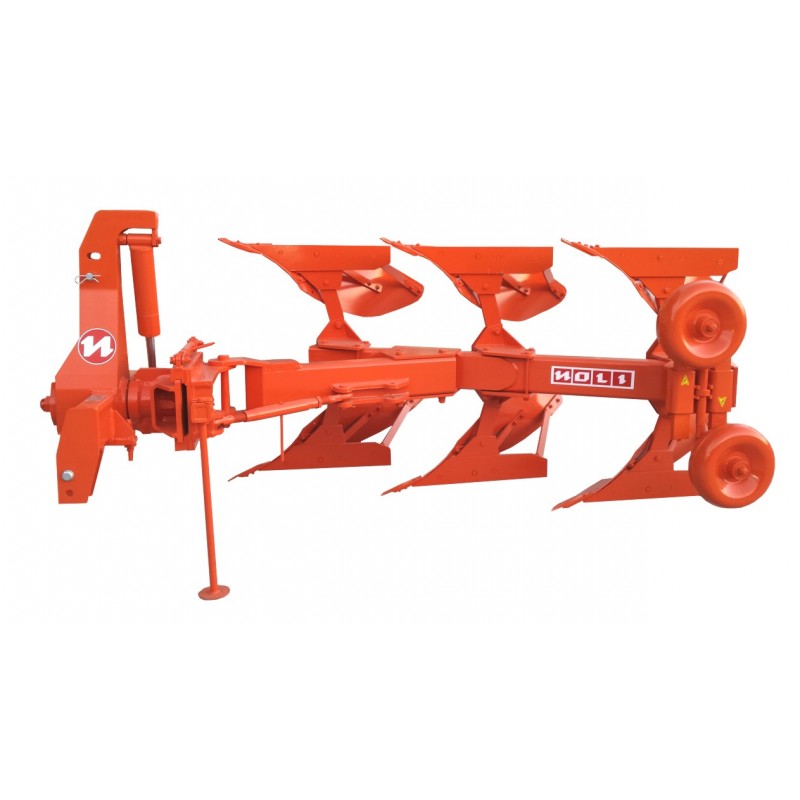

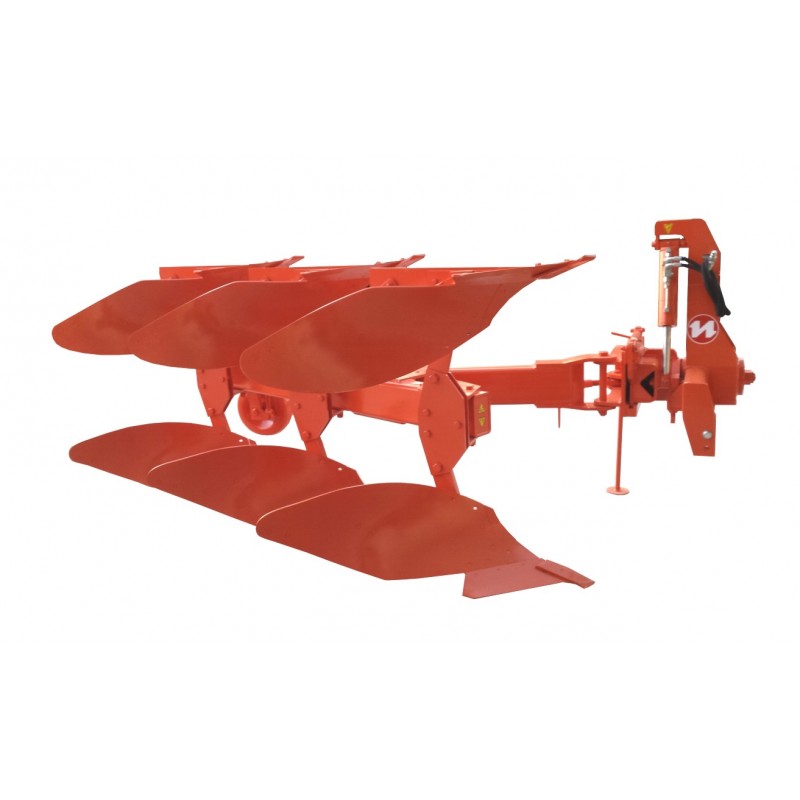

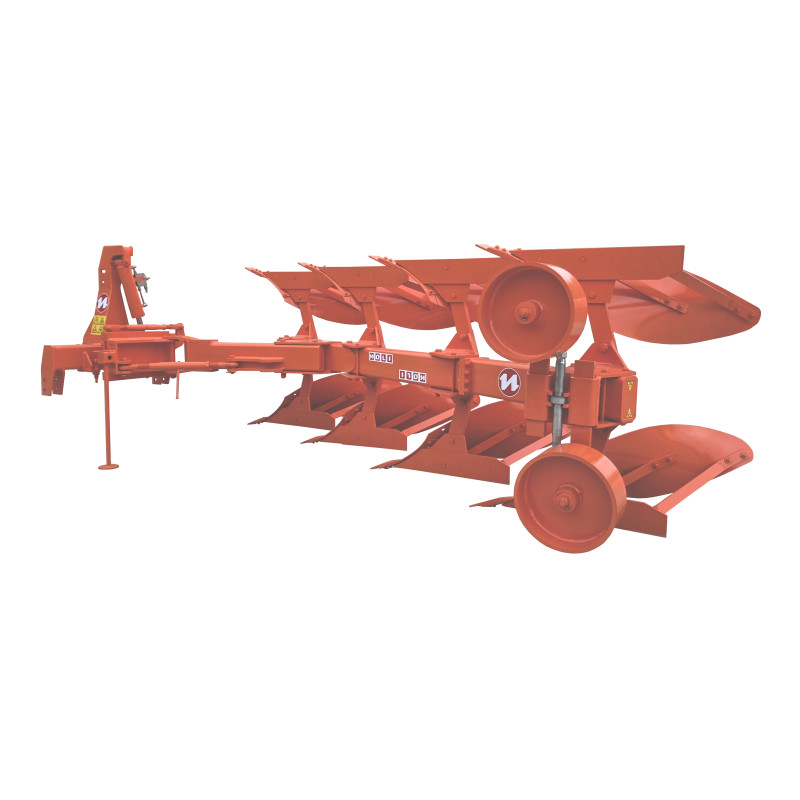

Reversible Plow Model ARG88

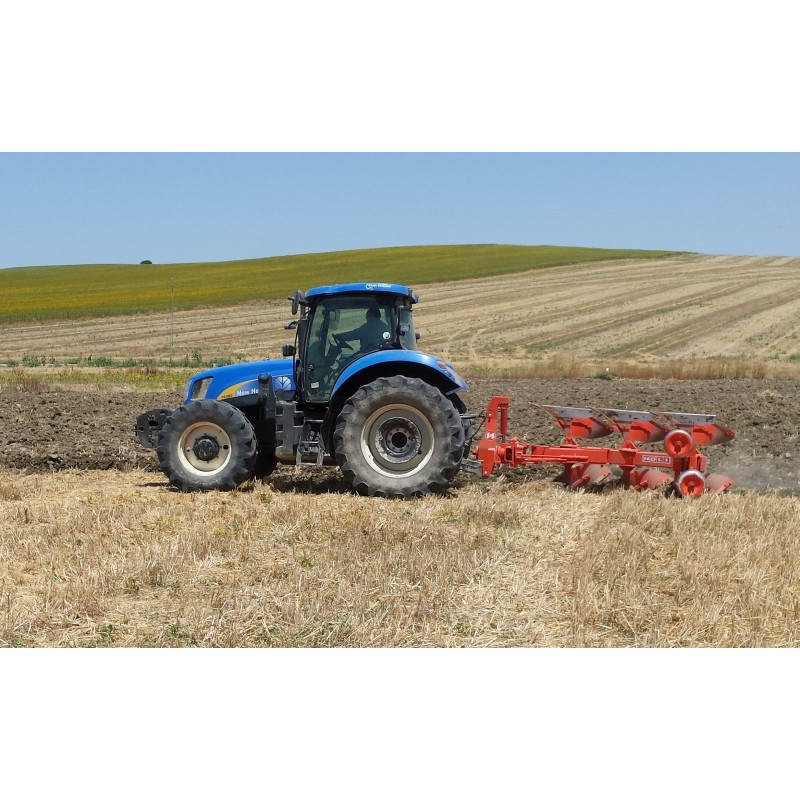

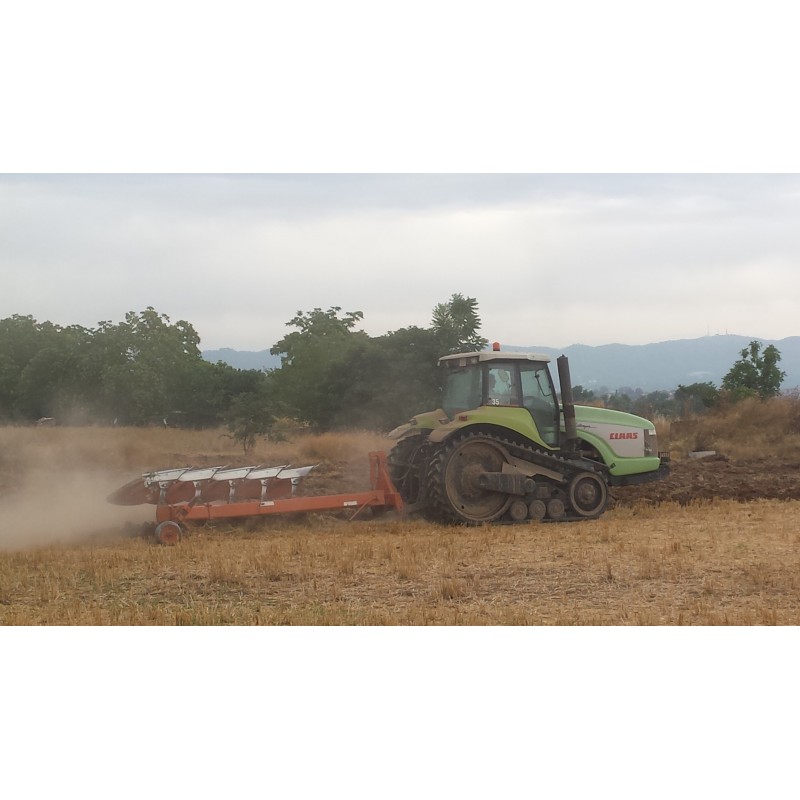

The reversible plow Model ARG, can work with the tractor wheel in and out of the furrow.
The reversible plow Model ARG, can work with the tractor wheel in and out of the furrow.
Equipped with safety device fuse screw work width is adjustable from 14 ", 16" and 18 ".
Reinforced structural tube chassis, equipped with hydraulic tipping and bars with Interchangeable Blade.
They are manufactured in 3 and 4 bodies.
|
Model, Núm. Inch and Corps |
Width Work Cms. |
Profundity Cms. |
Approx. Weight Kgrs. |
Minimum Power CV |
|
A-R-G 883 - 3 14"-16"-18" |
105-120-135 | 30 - 35 | 1.230 | 140 - 170 |
|
A-R-G 884 - 4 14"-16"-18" |
120-140-160 | 30 - 35 | 1.496 | 180 - 230 |
The measures and weights indicated in the table are approximate, depend on the configuration options and plow.
Including plow Model AR with the option (ARG) to work with the tractor wheel in and out of the groove.
